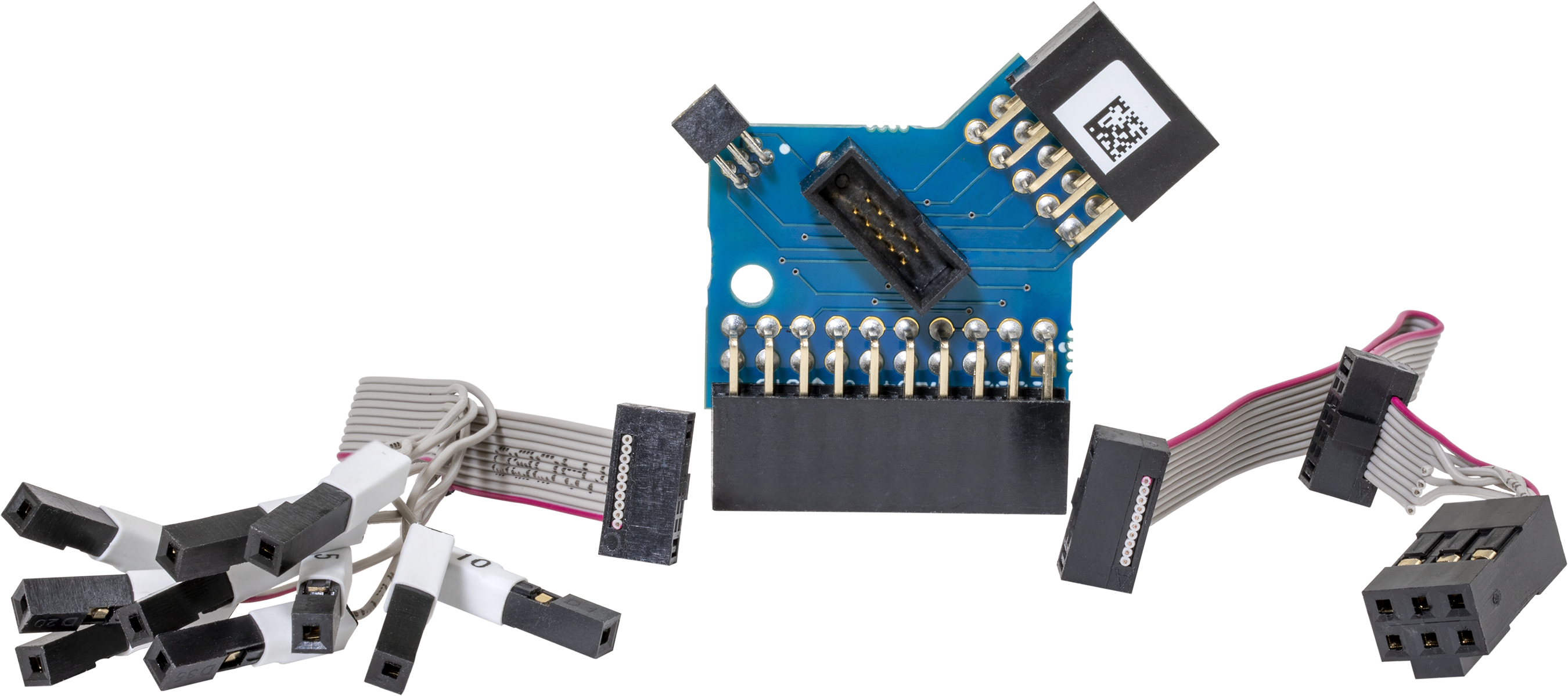

The Atmel-ICE Adapter Kit is a connectivity
board that gives Atmel-ICE Debugger cable compatibility to demo boards with a
variety of connectors. It supports JTAG, SWD, SPI, debugWIRE, PDI and aWire
protocols in multiple connector formats. It is useful for debugging AVR® and
SAM- based demonstration boards with the Atmel-ICE debugger.
- Adapter board
- 50-mil 10-pin IDC flat cable with 6-pin ISP and 10-pin
connectors
- 50-mil 10-pin mini-squid cable with 10 x 100-mil
sockets
- Adapter board with the following connections
- 100-mil 10-pin JTAG/SWD adapter
- 100-mil 20-pin SAM JTAG/SWD adapter
- 50-mil 6-pin SPI/debugWIRE/PDI/aWire adapter
- 50-mil 10-pin IDC flat cable with 6-pin ISP and 10-pin
connectors
- 50-mil 10-pin mini-squid cable with 10 x 100-mil
sockets
