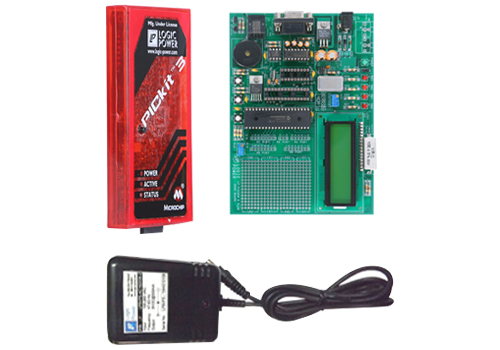

The kit includes a PICkit 3 Programmer/Debugger, a PICDEM 2 Plus , and a 9V universal power supply. Also included with the kit is Microchip MPLAB Integrated Development Environment (IDE). The complete kit introduces the developer to Microchips family of 8-bits MCUs hardware debugging and programming device
1. PICkit3 Programmer/Debugger (LPPICKit3-PG164130)
2. PICDEM 2 Plus Demo Board (LPPD-DM163022)
3. 9V Power Supply Adapter (Part No: LP9VPS-AC162039-2)
Note: Please click on the individual products for their respective package contents.
· Demo Board for 18, 28 & 40 pin Microchip 8bit IC’s (on board 18-, 28- and 40-pin DIP sockets)
·16X2 LCD.
· Piezo Buzzer driven by PWM signal.
· 32K x 8 Serial EEPROM
· 4 LEDs connected to PORTB
· 5 kΩ pot for devices with analog inputs
· 2 push button switches and Master reset.
· Microchip TC74 Digital Temperature sensor
· On-board external oscillators.
