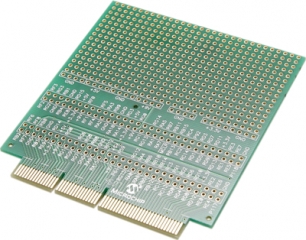

The Prototype PICtail Plus Daughter Board allows a designer to breadboard their solution easily for evaluation on Logic Power Explorer 16 Board (LPEXP16-DM240001) using PIC24 MCU or dsPIC33 DSC.This board is an 8 x 8 cm board with a card-edge connection that allows it to be plugged directly into the PICtail Plus expansion socket. The breadboard area provides access to all of the processor pins as well as a generous prototyping area.
AC164126 contains three blank Prototype PICtail Plus Daughter Boards.
- This Prototype PICtail Plus Daughter Board is an 8 x 8 cm board with a card-edge connection that allows it to be plugged directly into the PICtail Plus expansion socket on an Explorer 16 Evaluation Board.
- The breadboard area provides access to all of the processor pins as well as a generous prototyping area.
