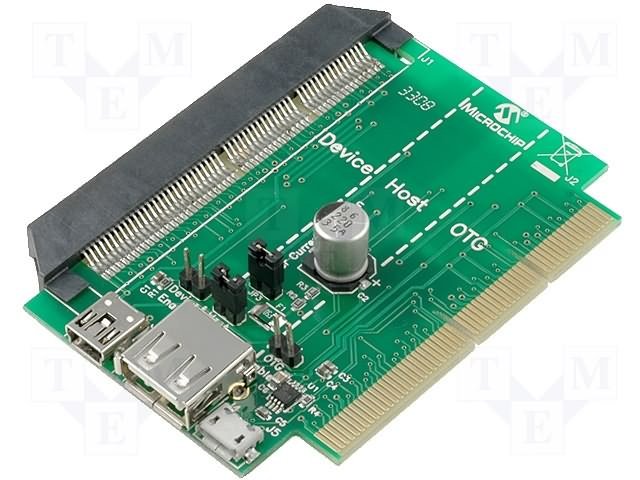

The USB PICtail Plus Daughter Board is a USB demonstration board for evaluating Logic Power’s 16 and 32-bit USB product lines using the Explorer 16 development board (LPEXP16-DM240001)
The USB PICtail. Plus Daughter Board is a USB demonstration board for evaluating Microchip Technology’s 16 and 32-bit USB product lines using the Explorer 16 development board.
Example circuits for USB device, embedded host and On-The-Go (OTG)
Both horizontal and vertical PICtail Plus Daughter Board connection interfaces
